External Push Notifications

It is a manual on how to set up sending of Push notifications to control panels via the account on the iRidium mobile web site.

What It Is for

It is necessary when working with SIP. When i3 pro is closed on the control panel and intercom tries to call to it, it is required to send a Push notification to the control panel to activate the i3 pro application.

There are two way to implement such function:
1. To connect to the iRidium server project and make intercom call to the server. When receiving the call, the server will send a Push notification to the control panel.
2.To send Push notifications via iRidium cloud. This manual describes this way.

How It Works

1. When calling from intercom, the intercom sends a request to sending a Push notification to iRidium cloud.
2. After getting the request the cloud gives a command to send notifications to the indicated group of notifications in the indicated automation object.
3. The cloud will send notifications to all panels which are connected to the indicated group of notifications.
4. After seeing the notification on the control panel, the user will start the application and see the incoming call.

Sending Notifications via the Cloud

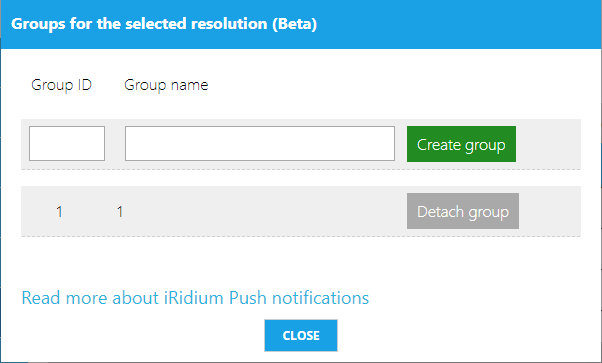

1. Open the automation object for which it is required to set up cloud notifications in the account and create a group of notifications.

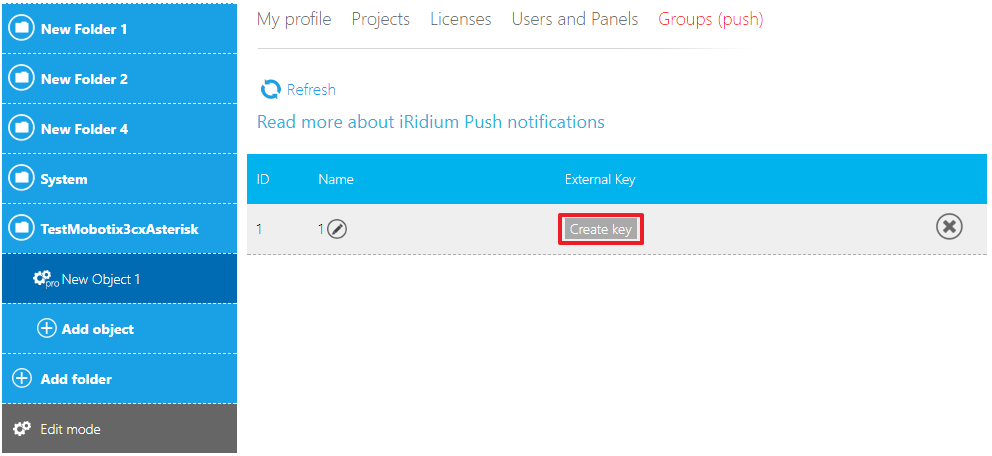

2. Go to the settings of the group of notifications and click on "create key" for the required group.

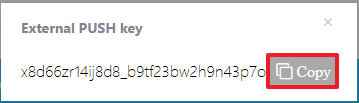

3. Copy the key. It will be used when setting up SIP intercom.

4. Set up SIP intercom. The main thing is to create the event which will send a request about sending a Push notification in the cloud.

The request looks as follows:

GET http://push.iridiummobile.net/?key=INPUT_HERE_YOUR_KEY&title=You%20have%20not%20recived%20call&sound_type=1

where
key - the key copied from the account
title - the notification text

Setting up of SIP Intercom

Setting up Notifications for Asterisk

1. Create an user.

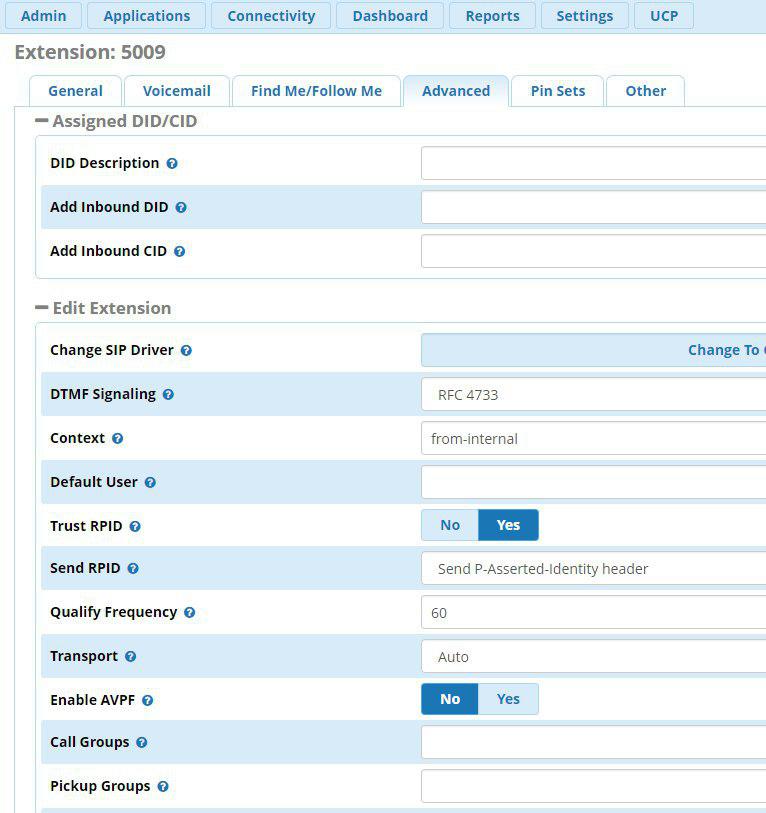

2. Specify the context name - from-internal.

3. Create a file on the server Asterisk ntf.sh chmod +x.

4. Make changes in the context.

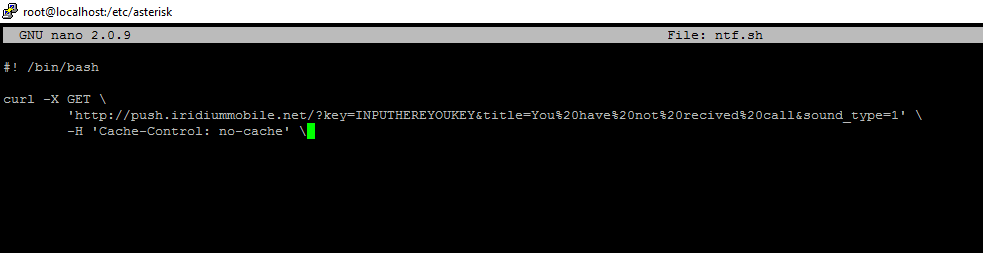

Bash Script text

#! /bin/bash

curl -X GET \
        'http://push.iridiummobile.net/?key=INPUTHEREYOUKEY&title=You%20have%20not%20recived%20call&sound_type=1' \ //Write the key copied from the account in the  Key parameter.
        -H 'Cache-Control: no-cache' \

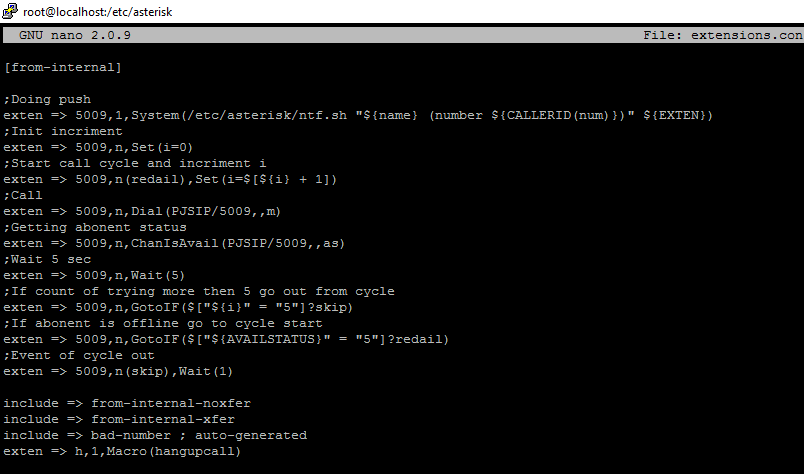

Context text

;Doing push
exten => 5009,1,System(/etc/asterisk/ntf.sh "${name} (number ${CALLERID(num)})" ${EXTEN})
;Init incriment
exten => 5009,n,Set(i=0)
;Start call cycle and incriment i
exten => 5009,n(redail),Set(i=$[${i} + 1])
;Call
exten => 5009,n,Dial(PJSIP/5009,,m)
;Getting abonent status
exten => 5009,n,ChanIsAvail(PJSIP/5009,,as)
;Wait 5 sec
exten => 5009,n,Wait(5)
;If count of trying more then 5 go out from cycle
exten => 5009,n,GotoIF($["${i}" = "5"]?skip)
;If abonent is offline go to cycle start
exten => 5009,n,GotoIF($["${AVAILSTATUS}" = "5"]?redail)
;Event of cycle out
exten => 5009,n(skip),Wait(1)

Setting up Notifications for 3CX

1. Create 3cx Voice Call App.
2. Add HTTP Request in it.

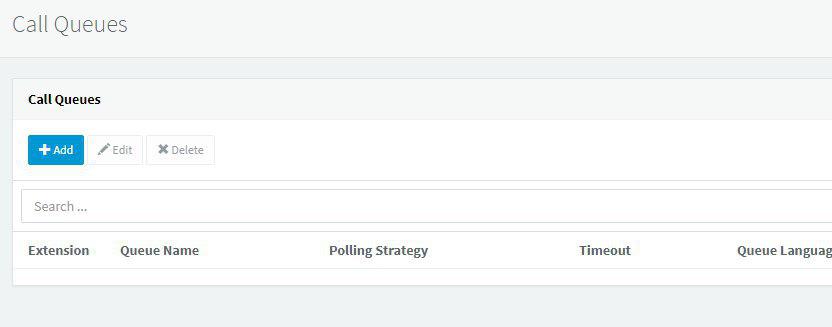

3. Create and set up the call queue.

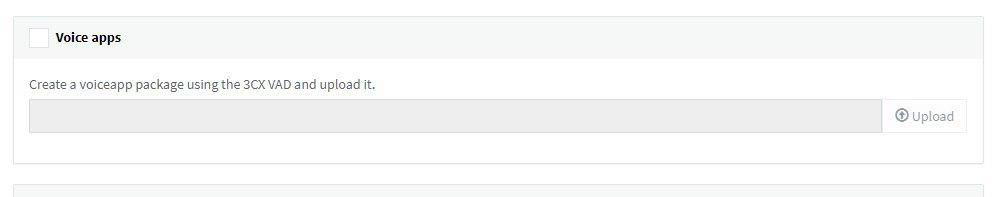

4. Add your voice application.

Setting Notifications for 3СХ v.16

1 Create a new project in 3CX Call Flow Designer.

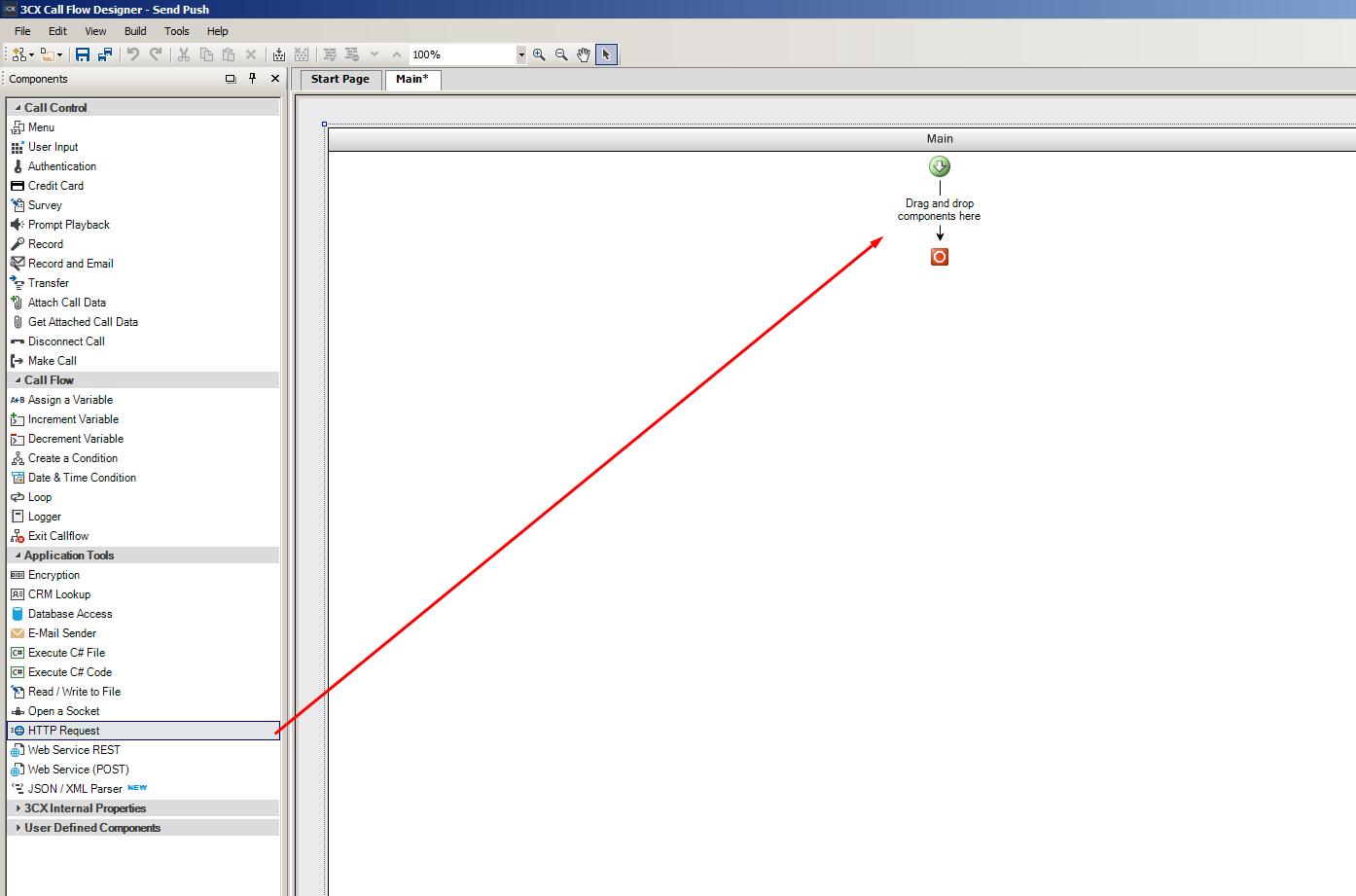

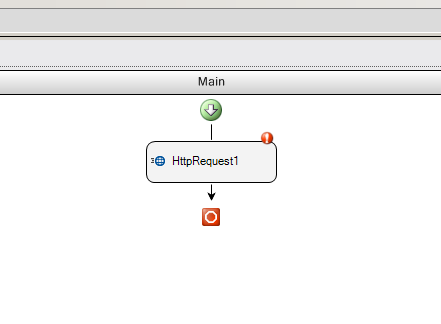

2 Move the HTTP Request component (the list of components is on the left) in the “Drag and drop components here” fields in the Main tab.

3 Open component setting with a double click.

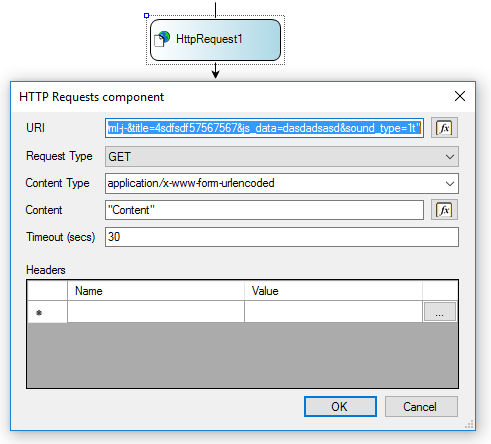

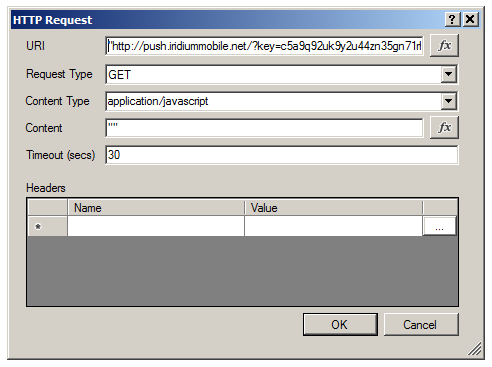

4 Fill in the settings.

Enter a link of external PUSH-notification in inverted commas in the URI field. The Content field must contain “”.

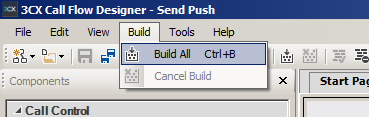

5 Build the app, find Build in the menu and select Build All.

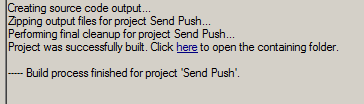

6 After successful build there will appear a message at the bottom, using which you can go to a folder where a.ZIP file with the app is saved.

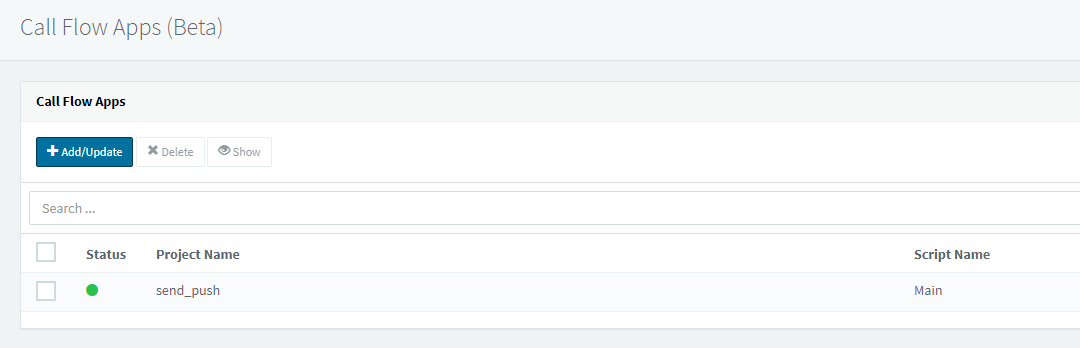

7 Go to the Call Flow Apps section in the web-interface of 3CX.

8 Add the created app and wait for it to download.

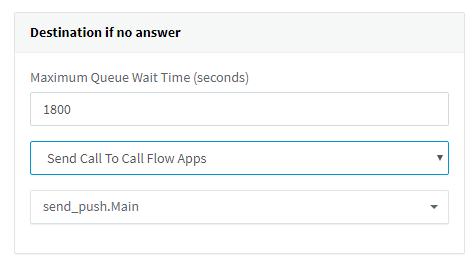

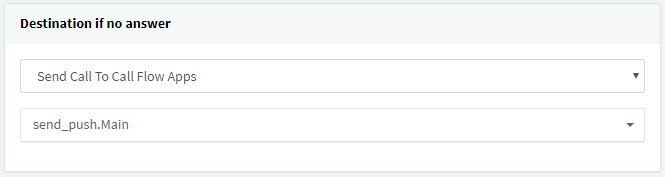

9 Sending PUSH-notification can be added to both Ring Groups and Call Queues. To realize sending PUSH-notificaton via Ring Groups, create a group, add numbers of subscribers to the group. В настройках группы укажите действие Select the Send Call To Call flow Apps and the created app action in the group settings to send notifications in case a subscribed didn't answer the call.

Setting for Call Queue is done the same way

10 When a call is made to a group number or to queue number and a user misses a call, and a project to get PUSH-notifications is running, a user will get a notificaton.

Setting up Notifications for Mobotix

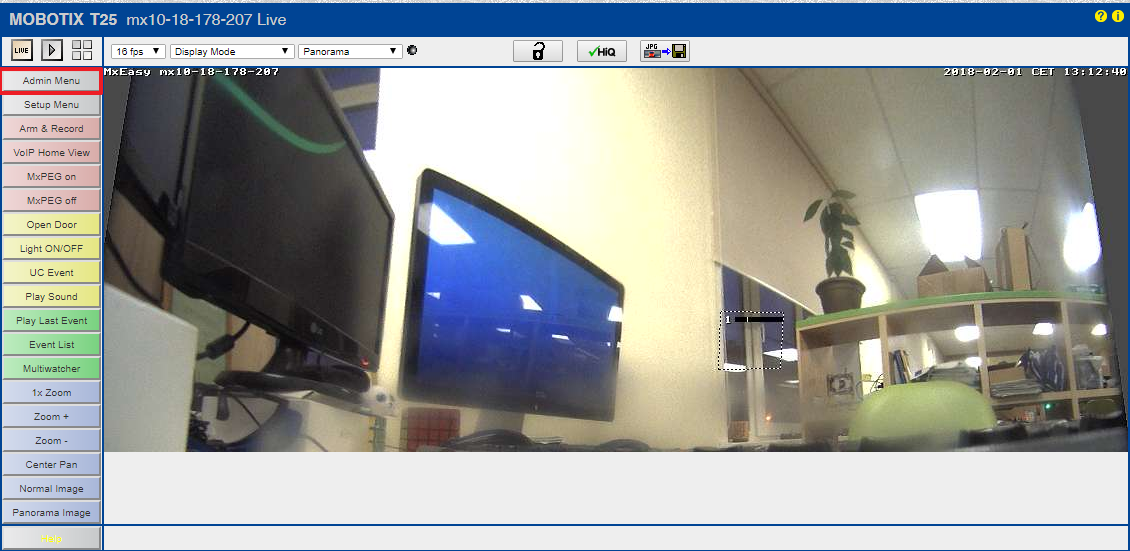

1. Go to the Mobotix web interface.
2. Go to the Admin menu section.

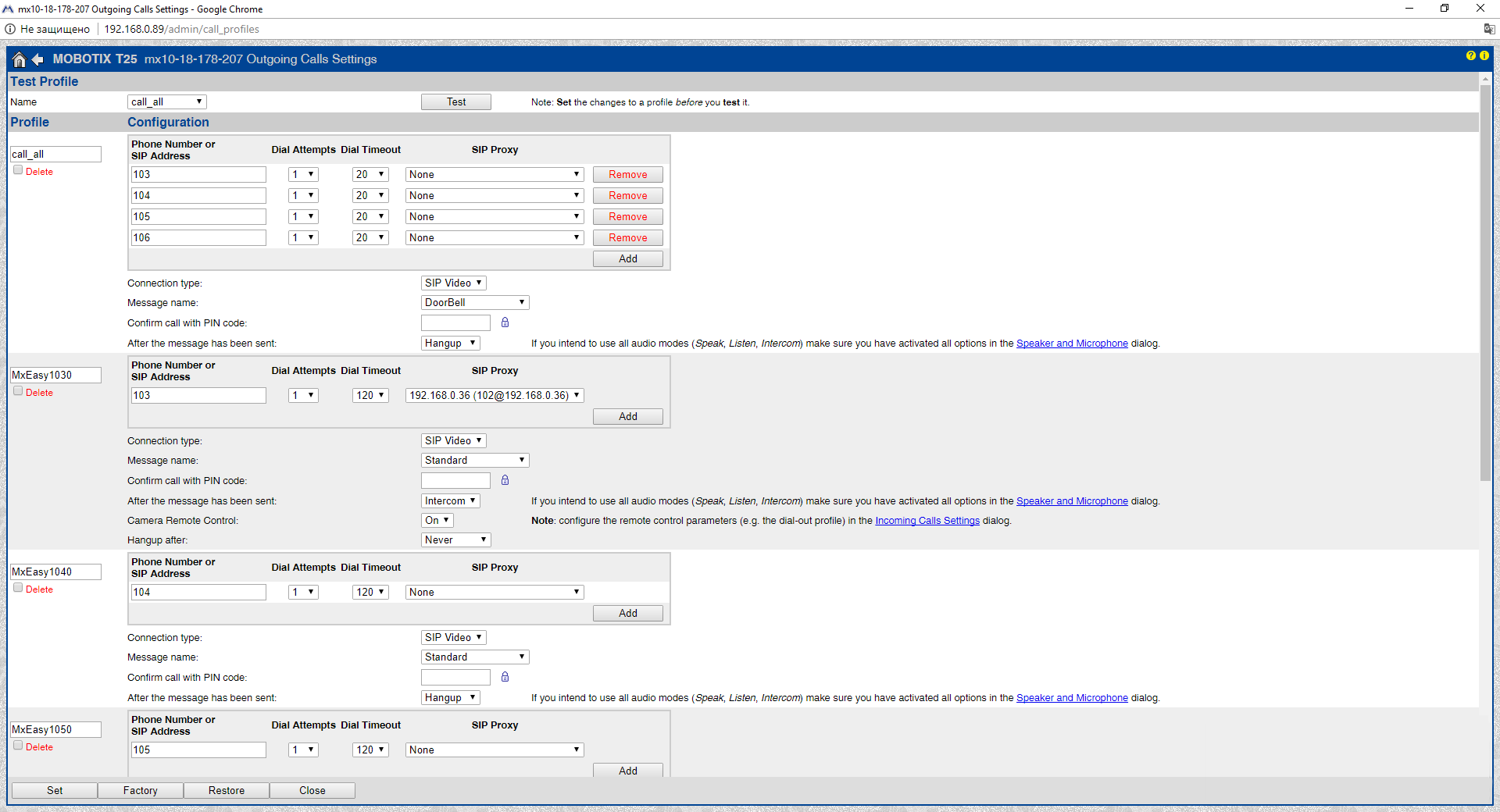

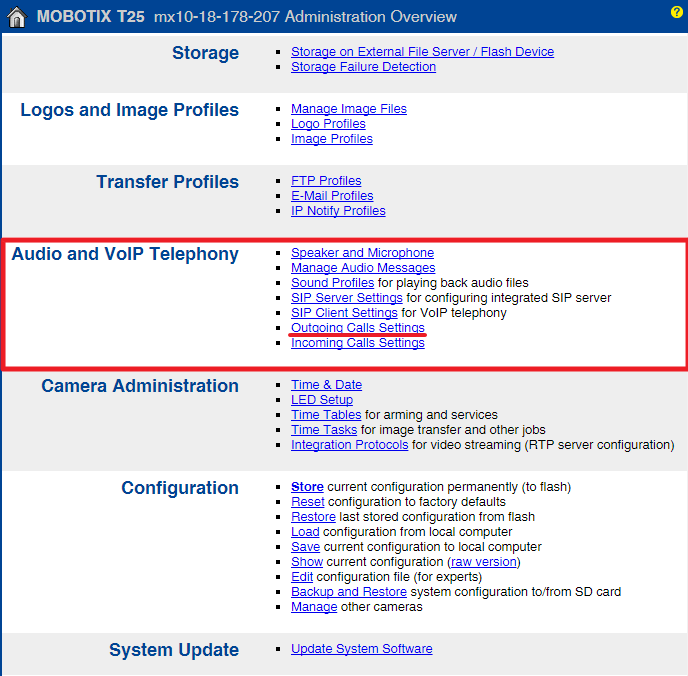

3. Then open the Outgoing calls settings menu in the Audio and VOIP Telephony section.

4. Set up phone numbers and SIP addresses. 5. Set up value 10 in Dial Attempts.

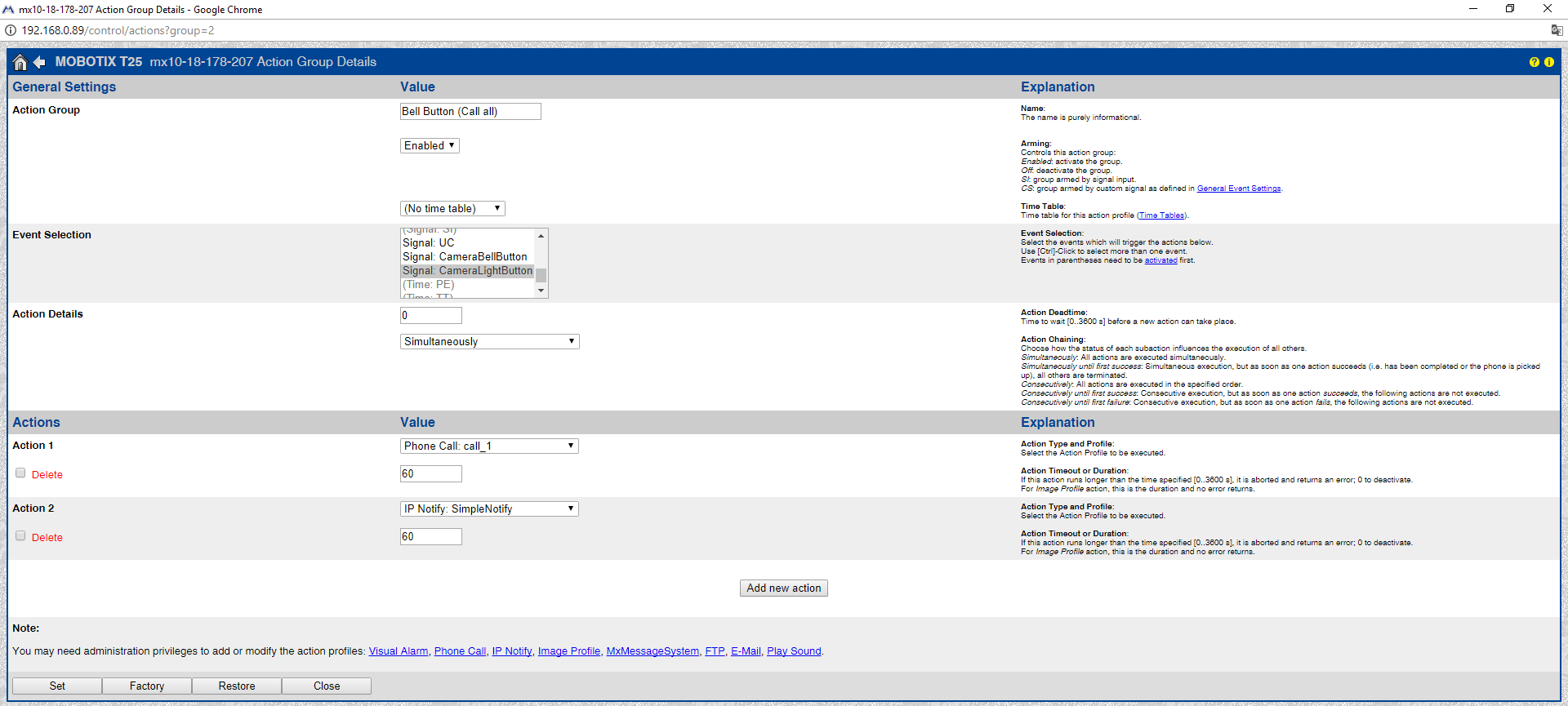

5. Go to Setup menu-> Action group overview. 6. Create Action, where we set up "If the intercom call button is pushed, then:"
Action 1 - start calling to the control panel
Action 2 - select the value SimpleNotify.

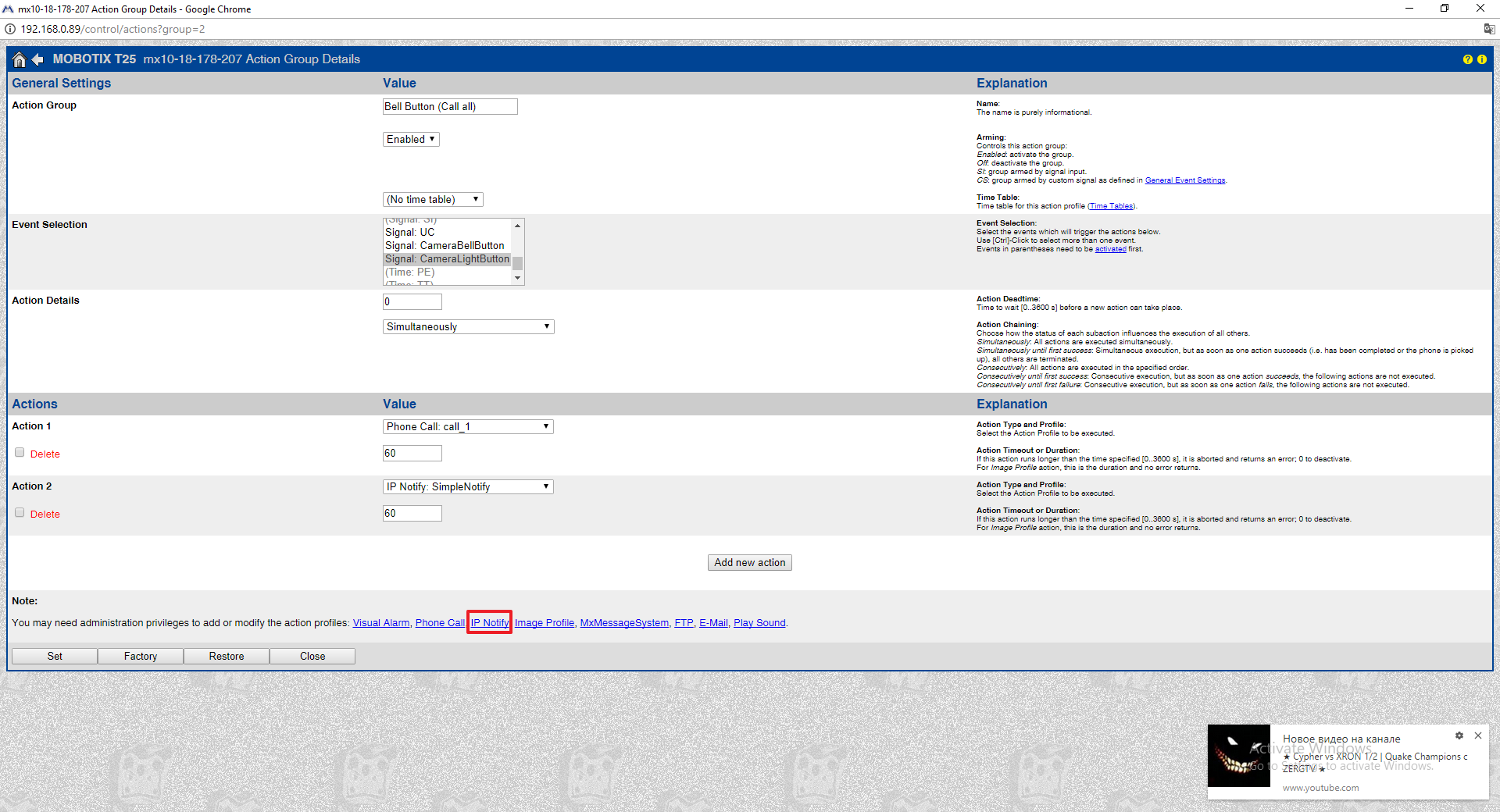

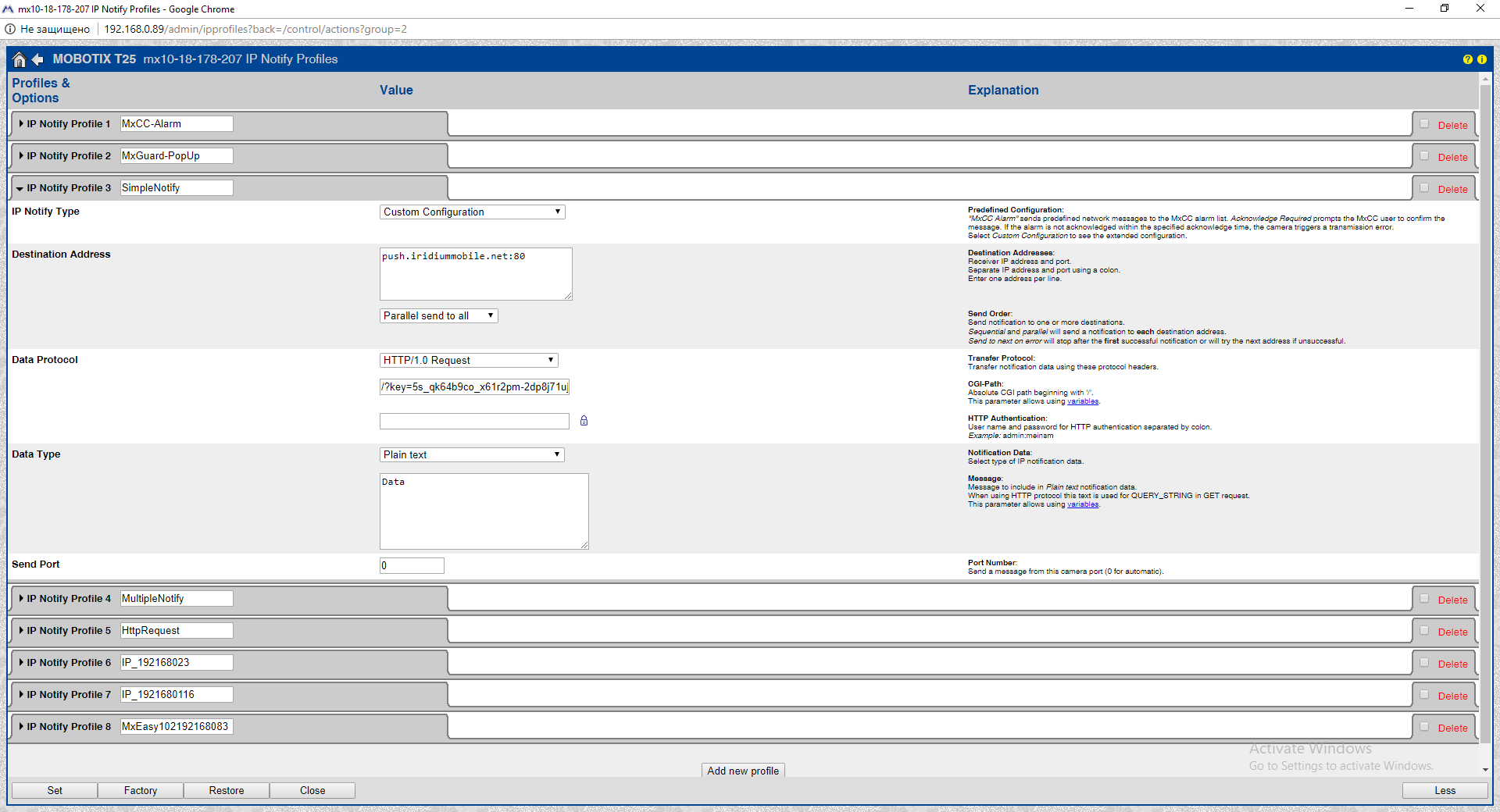

7. Go to the IP Notify window in the same section.

8. Open Simple Nofity and set up the parameters:

Destination Address = push.iridiummobile.net:80
Data Protocol = HTTP/1.0 Request

in the next field input the request text described above.

/?key=INPUTHEREYOUKEY&title=You%20have%20not%20recived%20call&sound_type=1

At that, the setting up of Mobotix is finished.
